CytoMotion Lite Camera

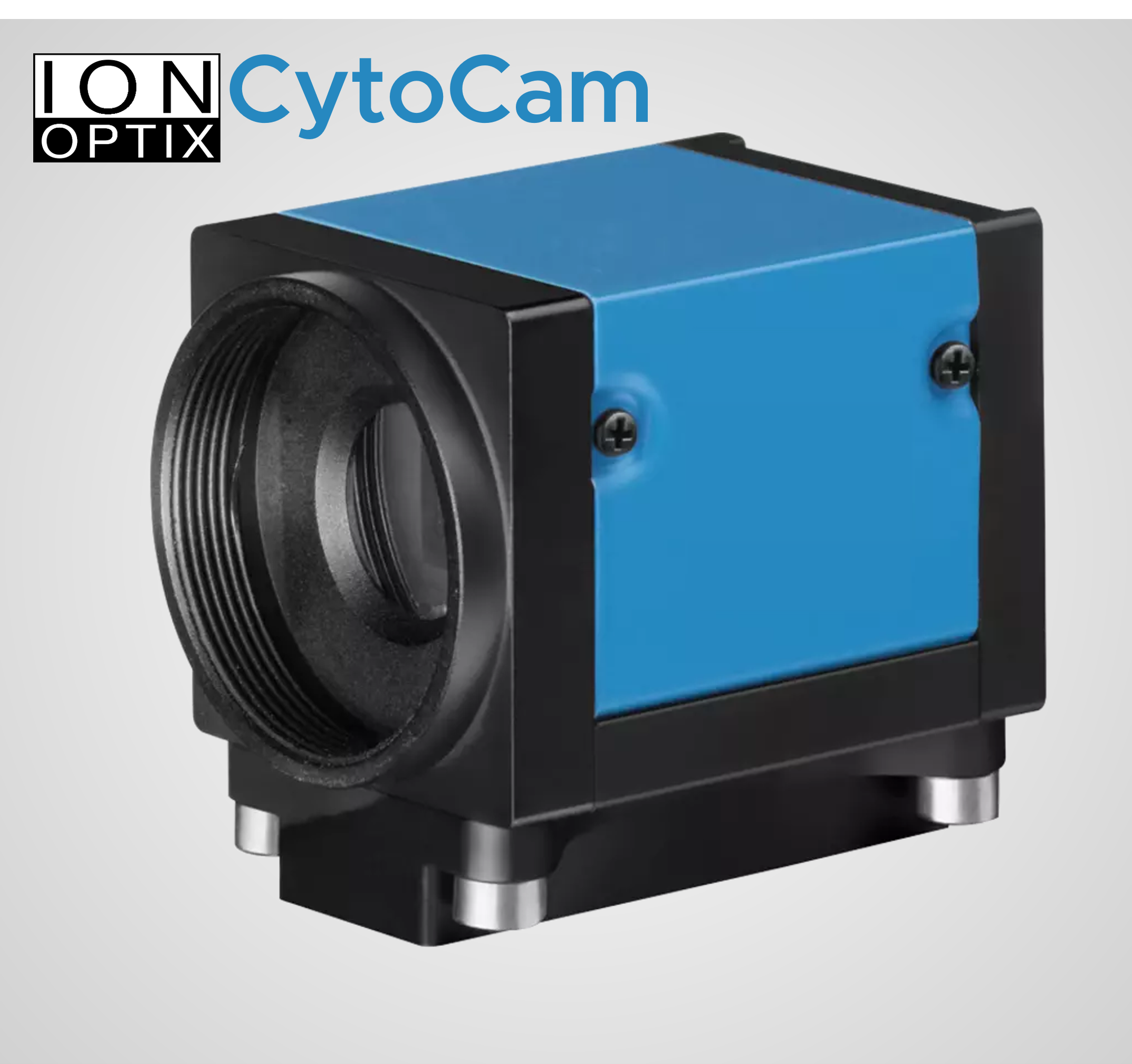

The IonOptix CytoCam is a high performance yet economical solution for visualizing shortening dynamics in iPSC-CMs and other contractile myocytes using our CytoMotion Lite System. It’s an all-digital camera that utilizes the USB3 Vision standard to remove the restrictions of analog video formats and frame grabbers. The camera employs a high-speed*, 2.3 MP (1920×1200) global shutter CMOS sensor (* >100 frames per second at full field). Exposure times and contrast levels are adjustable within IonWizard acquisition to maximize contrast.
Features:
- Programmable sensor gain and offset.
- Programmable integration time to capture fast movement or increase camera sensitivity.
- Frame rates: >100 fps at full field.
- CMOS sensor: 1/1.2 inch” sensor chip; 1920 pixels wide by 1200 lines; 5.86 µm pixel size.
- Single USB3 cable to camera for power and data transmission.
Resources
Note: This product is intended for research purposes only. It is not certified for clinical applications (including diagnostic purposes). Use of this product in uncertified applications is in violation of FDA regulations.
